225mm Deep | Max Span 5700mm
225mm Deep | Max Span 5700mm - Image 2
225mm Deep | Max Span 5700mm - Image 3
225mm Deep | Max Span 5700mm - Image 4

225mm Deep | Max Span 5700mm

£50.00 Excl VAT

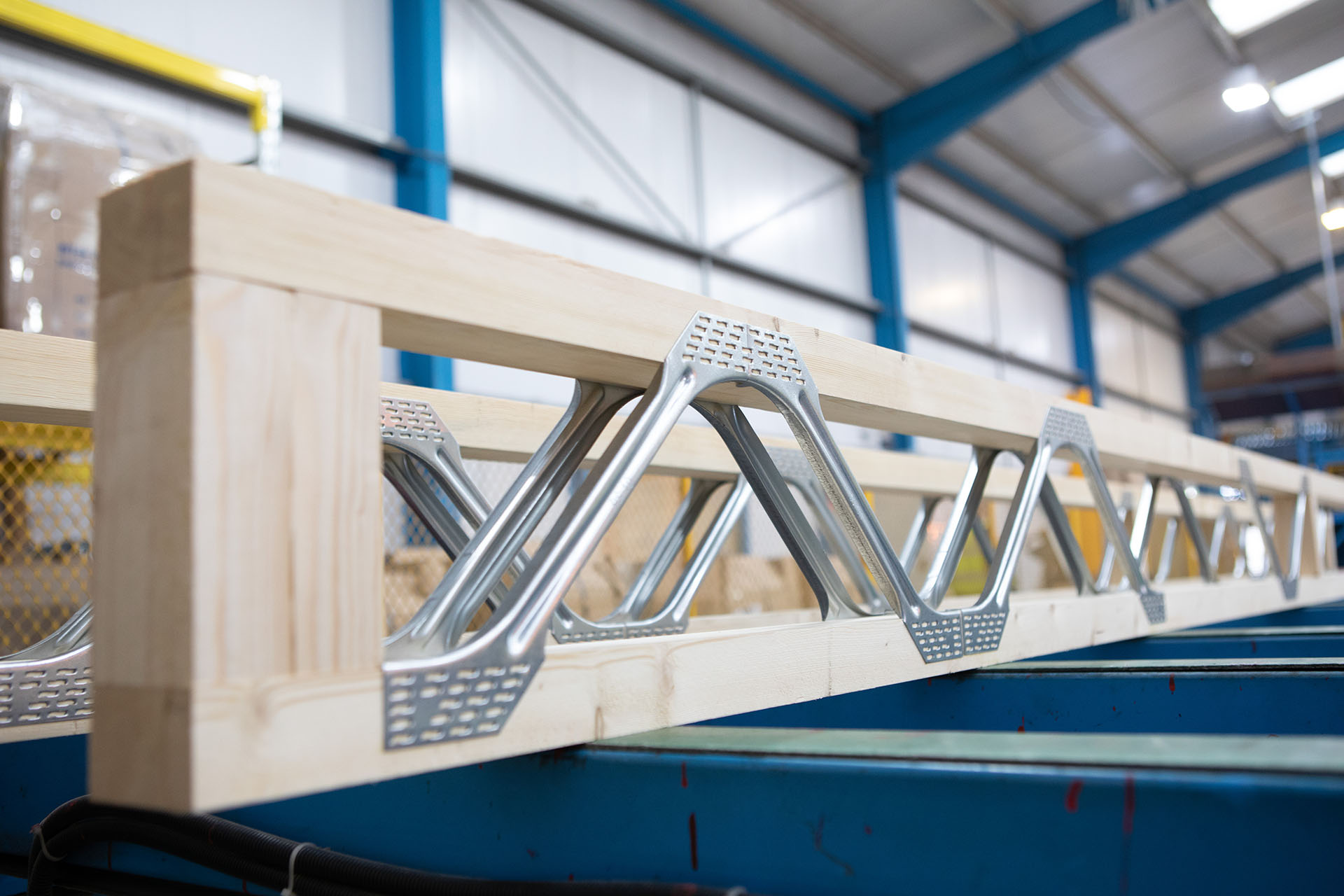

PS9 Posi-Joist – Overall depth 225mm. Clear service void of 131mm between the timber flanges.

SKU: PS9-2000
Category:
Tags: , , , , , ,
Brands:

Description

PS9 Metal Webs give a 225mm deep joist with a maximum Clear span of up to 5700mm (5.7m)

This joist profile also gives you a clear service void of 131mm between the timber flanges.

As there are so many design solutions and ways to meet your span, the actual span can only be calculated by our experienced designers who will take into account many factors such as your floor loads, design space of joists, depth of your floor zone and services.

The maximum spans shown here are examples of what are most likely to be achieved, assuming that:

  • Buying online these standard Joists should not be used as beams or trimmers supporting other elements, IF UNSURE PLEASE CONTACT US FOR A DETAILED DESIGN A QUOTE.
  • Posi-Joists ordered here are intended for domestic floors only or flat roofs with a build up weight not exceeding 100kg per m2
  • PLEASE NOTE : Span refers to the total length of the joist including bearings
  • They should be spaced at no more than the centres specified (Typically 600mm)
  • The project requires standard domestic floor loads
  • Deflection is limited to 14mm
  • Partitions are accounted for at 0.35KN / m2.

Additional information

Weight 25 kg
Dimensions 2000 × 72 × 253 mm
Design Limits

Buying online these standard Joists should not be used as beams or trimmers supporting other elements, IF UNSURE PLEASE CONTACT US FOR A DETAILED DESIGN A QUOTE.
Floor Design Loading

This joist is based on standard domestic floor loads.
Flat Roof Design Loading

Posi-Joists ordered here are intended for domestic floors only or flat roofs with a build up weight not exceeding 100kg per m2.
Span

PLEASE NOTE : Maximum span refers to the total length of the joist including bearings
Joist Spacing

They should be spaced at no more than the centres specified (Typically 600mm)
Partition Loads

Partitions are accounted for at 0.35KN / m2.
Deflection

Designed deflection is limited to 14mm
